Neural Radiance Field

Part1: Fit a Neural Field to a 2D Image

Model Architecture

The model is a neural field network designed to map 2D coordinates to RGB color values. The architecture is as follows:

1. Positional Encoding: The input 2D coordinates are first transformed using a positional encoding function. This function applies a series of sine and cosine transformations to the coordinates, effectively increasing the dimensionality of the input and allowing the model to capture high-frequency details.

Neural Network Structure:

Input Layer: The input to the network is the positionally encoded coordinates.

Hidden Layers: The network consists of three hidden layers, each with a ReLU activation function. The number of neurons in each hidden layer is determined by the hidden_dim hyperparameter.

Output Layer: The final layer outputs three values, corresponding to the RGB color channels, and applies a Sigmoid activation function to ensure the outputs are in the range [0, 1].

Hyperparameters

For the training process, the following hyperparameters were chosen:

Hidden Dimension (hidden_dim): This determines the number of neurons in each hidden layer. Various values were tested, including 64 and 256.

Positional Encoding Layers (pos_encoding_L): This parameter controls the number of sine and cosine transformations applied to the input coordinates. Values of 5 and 10 were explored.

Learning Rate: A learning rate of 0.01 was used for the Adam optimizer.

Batch Size: A batch size of 10,000 coordinates was used for each training iteration.

Number of Iterations: The model was trained for 2000 iterations.

Training Process and Results

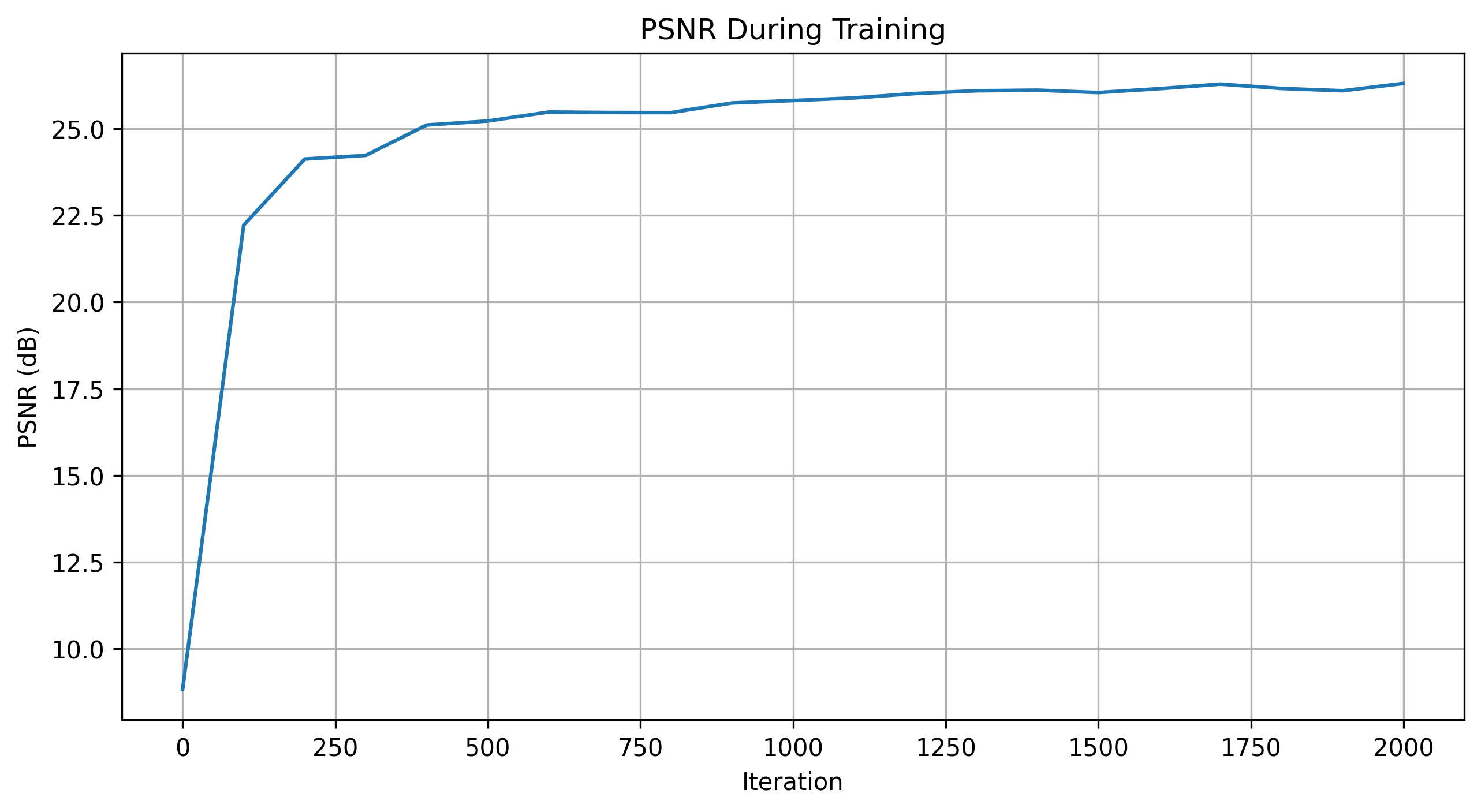

PSNR Curve: The Peak Signal-to-Noise Ratio (PSNR) was calculated at regular intervals during training to monitor the model's performance. The PSNR curve showed a steady increase, indicating that the model was learning to reconstruct the image more accurately over time.

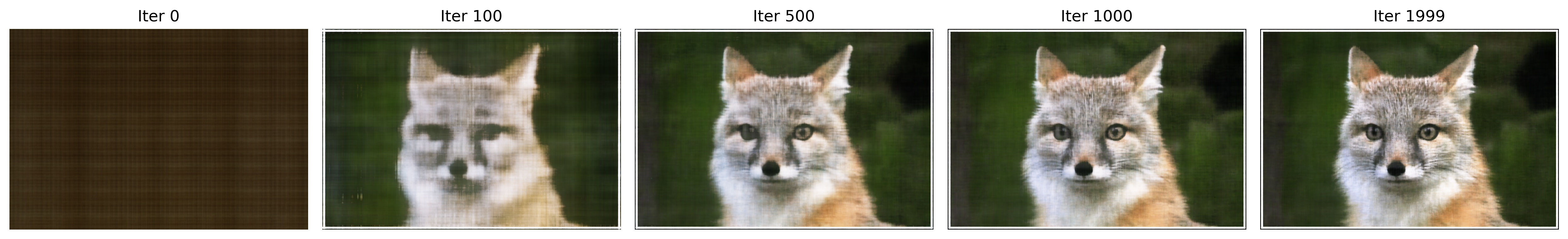

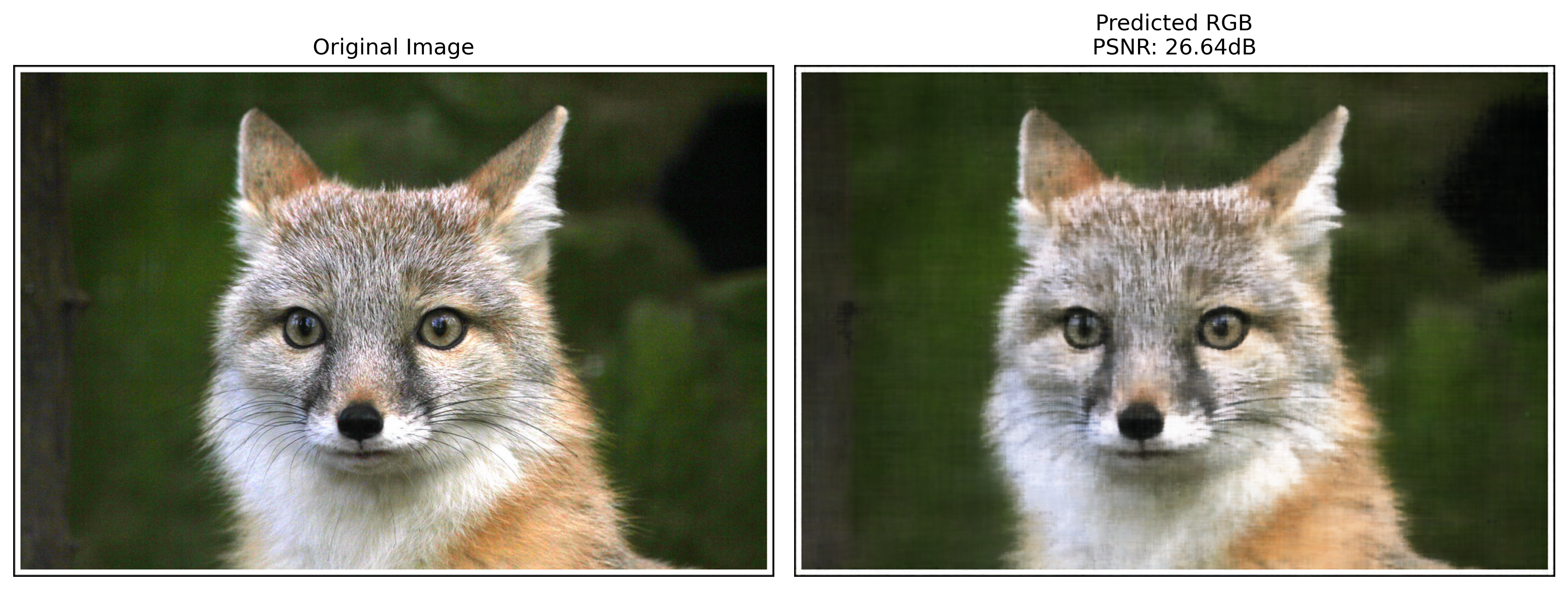

Visualization of Predicted Images: During training, the predicted images were visualized at various iterations. Initially, the predictions were noisy and lacked detail, but as training progressed, the images became clearer and more closely resembled the target image.

Additional Experiment

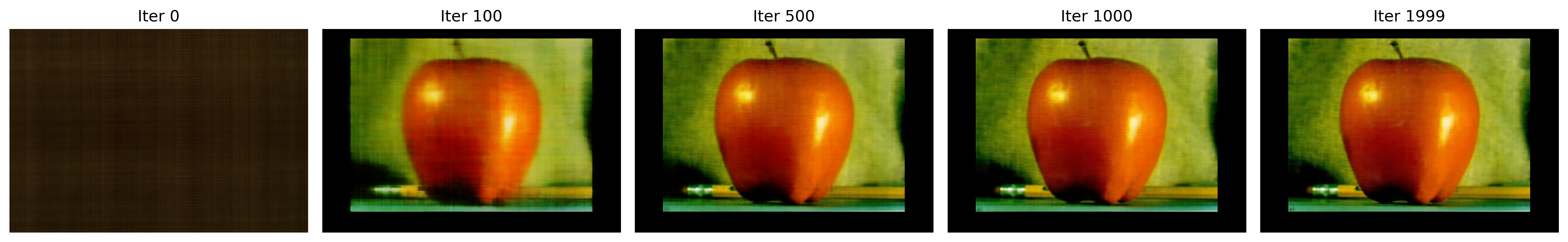

The optimization process was also run on another image from the collection. A single set of hyperparameters was chosen for this experiment, and the PSNR curve was plotted to show the model's performance over time. The visualization of the training process demonstrated similar improvements in image quality as seen in the initial experiment.

Hyperparameter Tuning

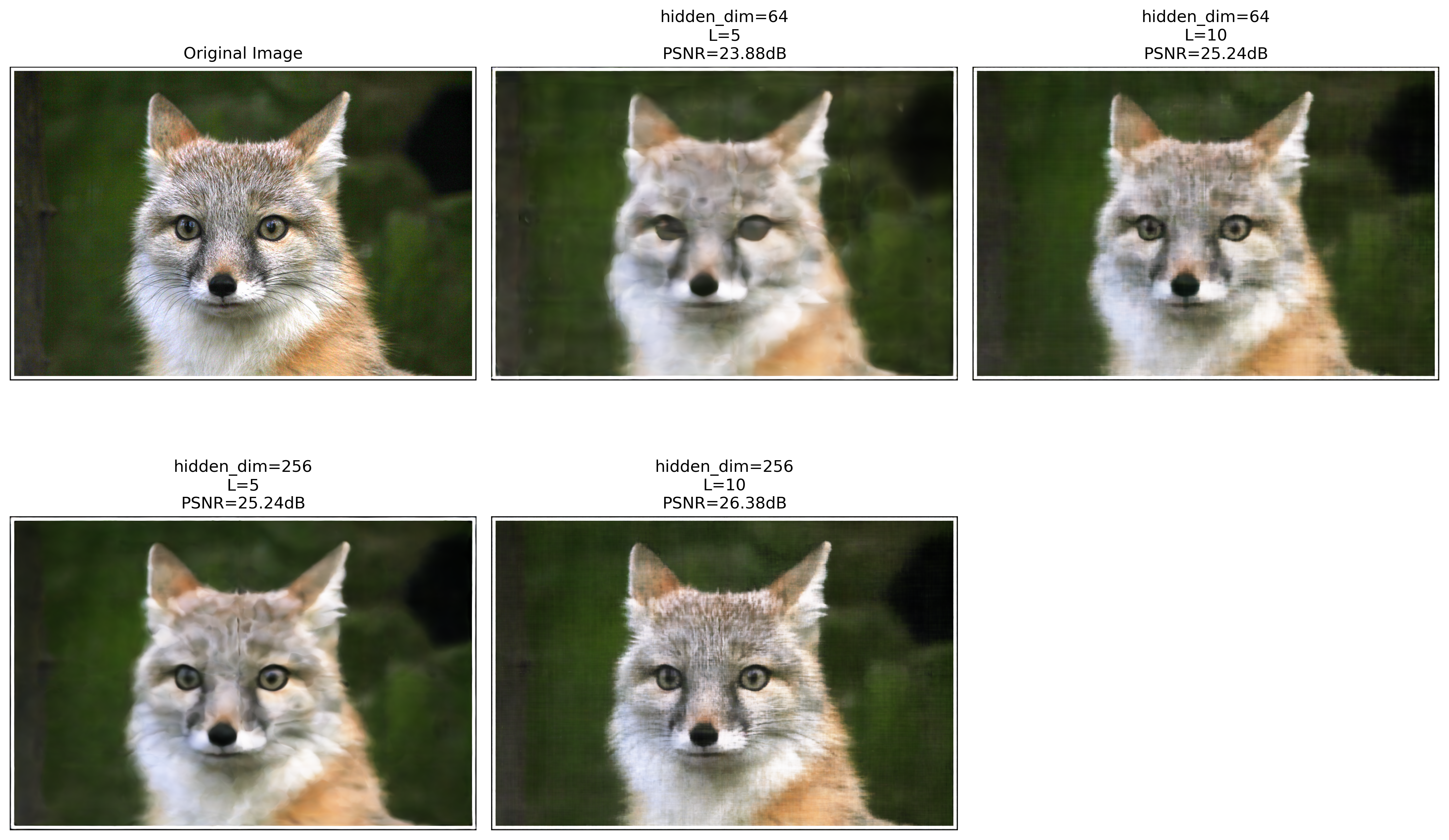

A hyperparameter tuning process was conducted to identify the best combination of hidden_dim and pos_encoding_L. Multiple configurations were tested, and the results were compared based on the final PSNR values. The tuning process helped in selecting the optimal hyperparameters that provided the best balance between model complexity and performance.

Part2: Fit a Neural Radiance Field from Multi-view Images

Part 2.1: Create Rays from Cameras

1. Camera to World Coordinate Conversion

• transform(c2w, x_c)

• This function transforms a point from the camera coordinate system to the world coordinate system using the camera-to-world transformation matrix (c2w). The transformation involves converting the point to homogeneous coordinates, applying the transformation matrix, and then converting back to non-homogeneous coordinates.

def transform(c2w, x_c):
    x_h = torch.cat([x_c, torch.ones_like(x_c[..., :1])], dim=-1)  # [..., 4]
    x_w_h = torch.matmul(c2w, x_h.unsqueeze(-1))  # [..., 4, 1]
    x_w = x_w_h[..., :3, 0]  # [..., 3]
    return x_w

2. Pixel to Camera Coordinate Conversion

• pixel_to_camera(K, uv, s)

• This function calculates the ray origin and direction for a given pixel. The ray origin is the camera position, and the direction is computed by transforming a point with depth 1 from the camera to the world space. The direction is then normalized.

def pixel_to_camera(K, uv, s):
       K_inv = torch.inverse(K)
       uv_homogeneous = torch.cat([uv, torch.ones_like(uv[..., :1])], dim=-1)
       x_c_homogeneous = torch.matmul(K_inv, uv_homogeneous.unsqueeze(-1)).squeeze(-1)
       x_c = x_c_homogeneous * s
       return x_c

• Pixel to Ray Conversion

• pixel_to_ray(K, c2w, uv)

• This function calculates the ray origin and direction for a given pixel. The ray origin is the camera position, and the direction is computed by transforming a point with depth 1 from the camera to the world space. The direction is then normalized.

   def pixel_to_ray(K, c2w, uv):
       ray_o = c2w[..., :3, 3]
       x_c = pixel_to_camera(K, uv, torch.ones_like(uv[..., :1]))
       x_w = transform(c2w, x_c)
       ray_d = x_w - ray_o
       ray_d = ray_d / torch.norm(ray_d, dim=-1, keepdim=True)
       return ray_o, ray_d

Part 2.2: Sampling

1. Sampling Rays from Images

• This involves sampling rays from multiple images. Two strategies can be used: sampling a fixed number of rays from a subset of images or globally sampling rays from all images. The pixel coordinates are adjusted to account for the offset to the pixel center.

   def sample_rays(images, c2ws, K, N_rays, strategy='per_image'):
       N, H, W = images.shape[:3]
       if strategy == 'per_image':
           image_indices = torch.randperm(N)[:N_rays // H // W]
           rays_per_image = N_rays // len(image_indices)
           all_ray_o, all_ray_d = [], []
           for idx in image_indices:
               uv = torch.rand(rays_per_image, 2) * torch.tensor([W, H]) + 0.5
               ray_o, ray_d = pixel_to_ray(K, c2ws[idx], uv)
               all_ray_o.append(ray_o)
               all_ray_d.append(ray_d)
           ray_o = torch.cat(all_ray_o, dim=0)
           ray_d = torch.cat(all_ray_d, dim=0)
       else:
           pass
       return ray_o, ray_d

2. Sampling Points along Rays

• This process involves discretizing each ray into multiple sample points in 3D space. Uniform sampling is performed between a near and far plane, with optional perturbation added during training to prevent overfitting.

   def sample_along_rays(ray_o, ray_d, near=2.0, far=6.0, n_samples=64, perturb=True):
       t = torch.linspace(near, far, n_samples)
       if perturb:
           t_width = (far - near) / (n_samples - 1)
           t = t + (torch.rand(t.shape) * t_width)
       t = t.unsqueeze(0).expand(ray_o.shape[0], n_samples)
       pts = ray_o[..., None, :] + ray_d[..., None, :] * t[..., :, None]
       return pts, t
